For inclined roof

Structure anchored with hanger bolt – Isopanel • ABL-IP

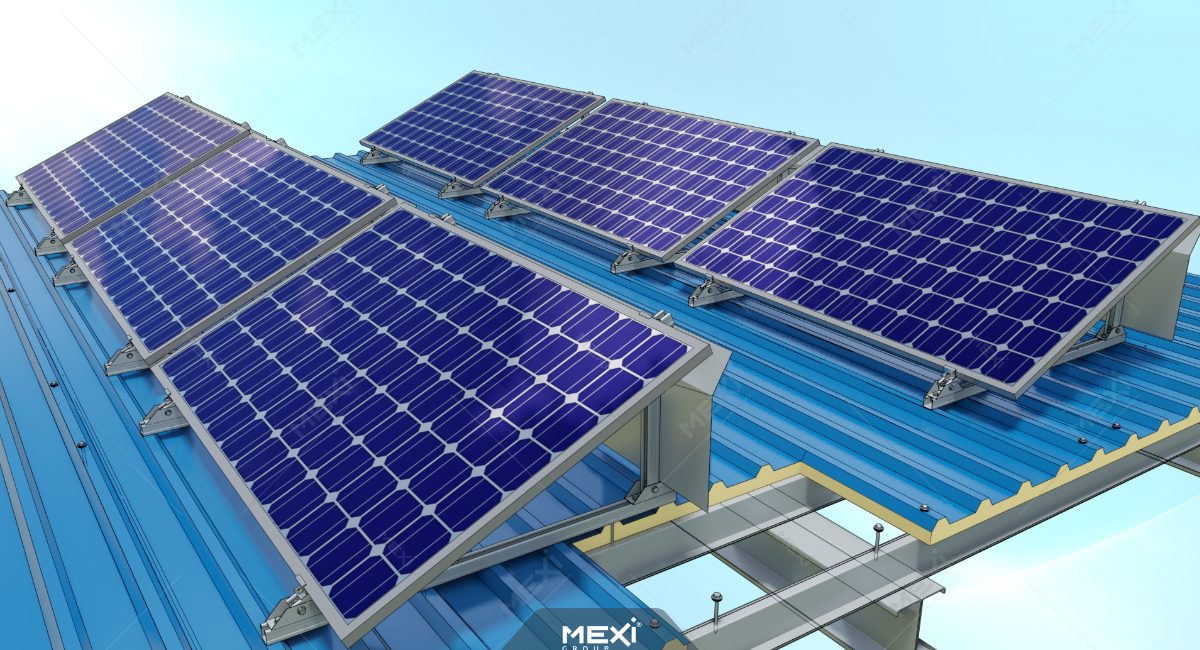

angled photovoltaic panel support structure

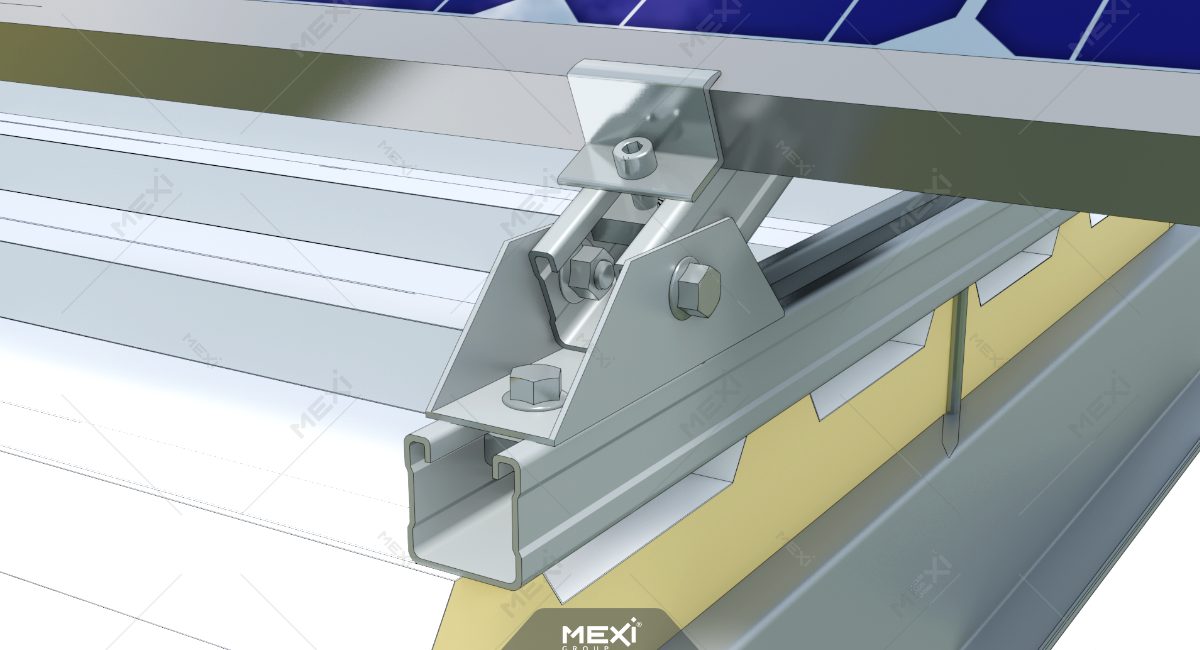

photovoltaic mount system fixed with scres to roof structure

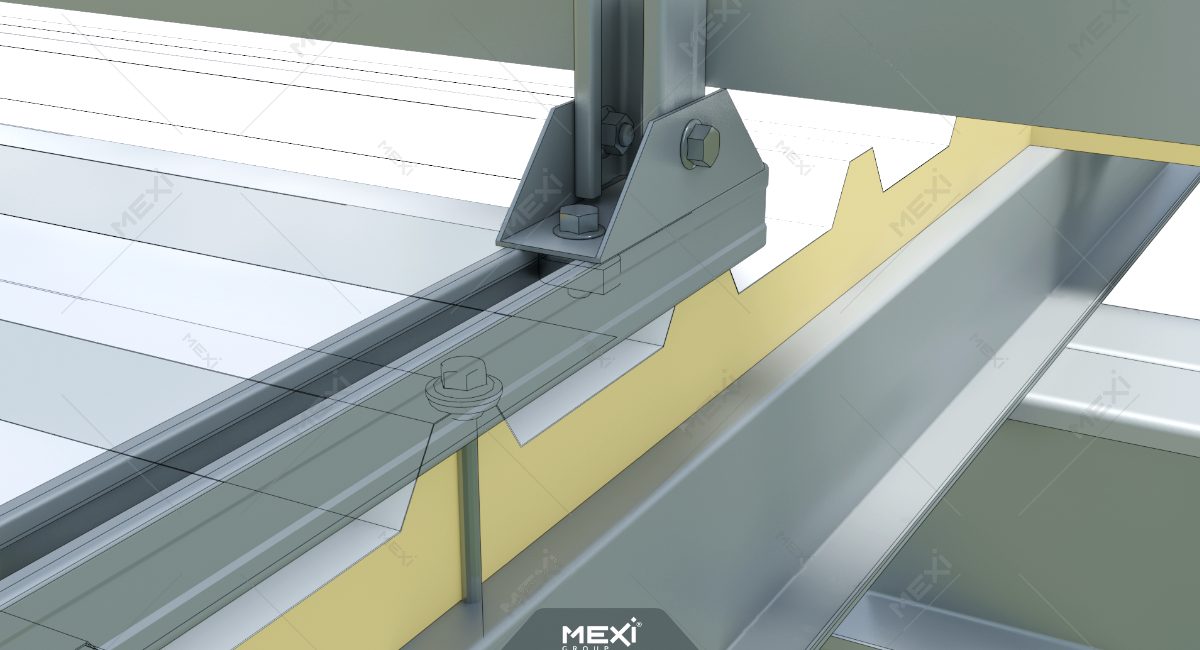

detail of anchoring the solar structure to the roof
photovoltaic mounting system for variable angles of inclination

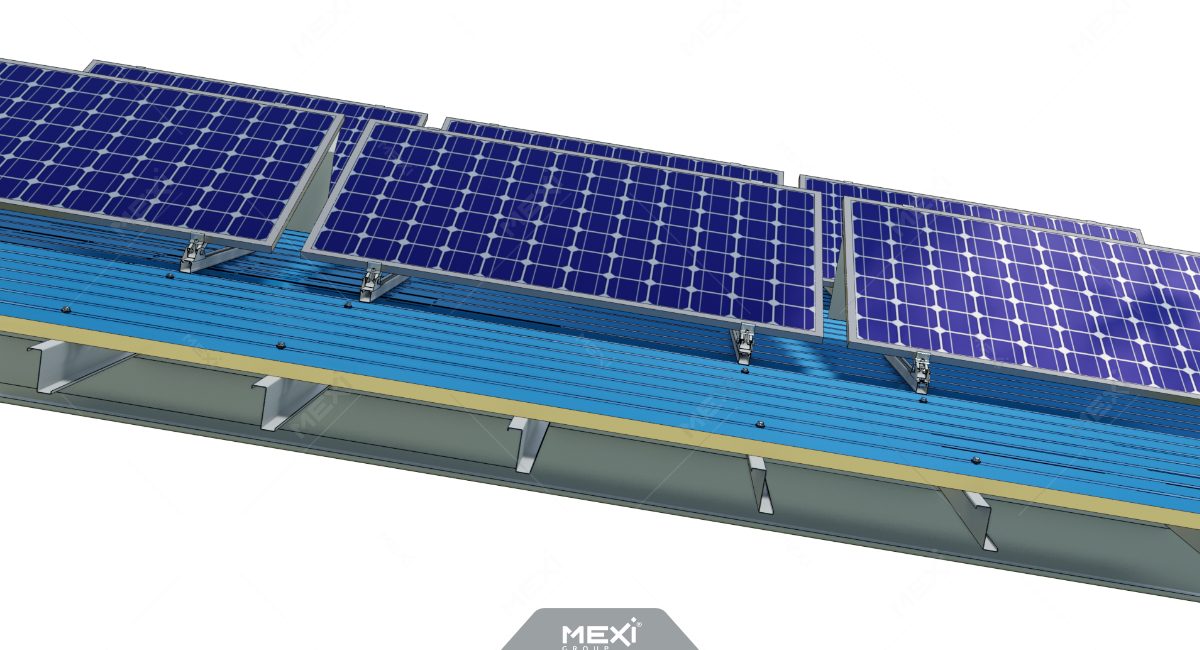

photovoltaic panel mounting system on inclined roof, adjustable structure
angled photovoltaic panel support structure
photovoltaic mount system fixed with scres to roof structure
detail of anchoring the solar structure to the roof
photovoltaic mounting system for variable angles of inclination
photovoltaic panel mounting system on inclined roof, adjustable structure

SPECIFICATIONS:

fixable with screws compatible with the roof

Fixing with screws to the roof

YES

solar panel structure fixed using ballasts

Anchoring with ballasts

NO

the angle of inclination

Angle of inclination

10-25º

can be installed photovoltaic panels with power between

PV panel power

350-700 W

wind resistance for the photovoltaic system

Wind resistance

150 Km/h

the snow load capacity of the photovoltaic system

Snow load capacity

2.5 kN/m2

the angle of inclination

The structure can be ordered at different angles of inclination, between 10-25 degrees.

fixable with screws compatible with the roof

Fixable with screws according to the roof structure system.

can be installed photovoltaic panels with power between

Solar panels with power between 350-700 W can be installed.

easy and quick installation of the structure

Easy installation due to the simplicity of its components and connections.

quality photovoltaic steel structures

Guaranteed quality of S350-GD steel profiles through production certificates.

corrosion protection by galvanization

Galvanized steel profiles with Z350, ZM310 for maximum protection against corrosion.

◆ Includes all the hardware and fasteners, including the photovoltaic panel fasteners.

◆ The mounting system can adapt to the different sizes of the photovoltaic panels on the market.

◆ It is recommended to use wind deflector plate for this mounting system.
