For inclined roof

Mounting with hanger bolt for metallic roof tiles • ASA-TM

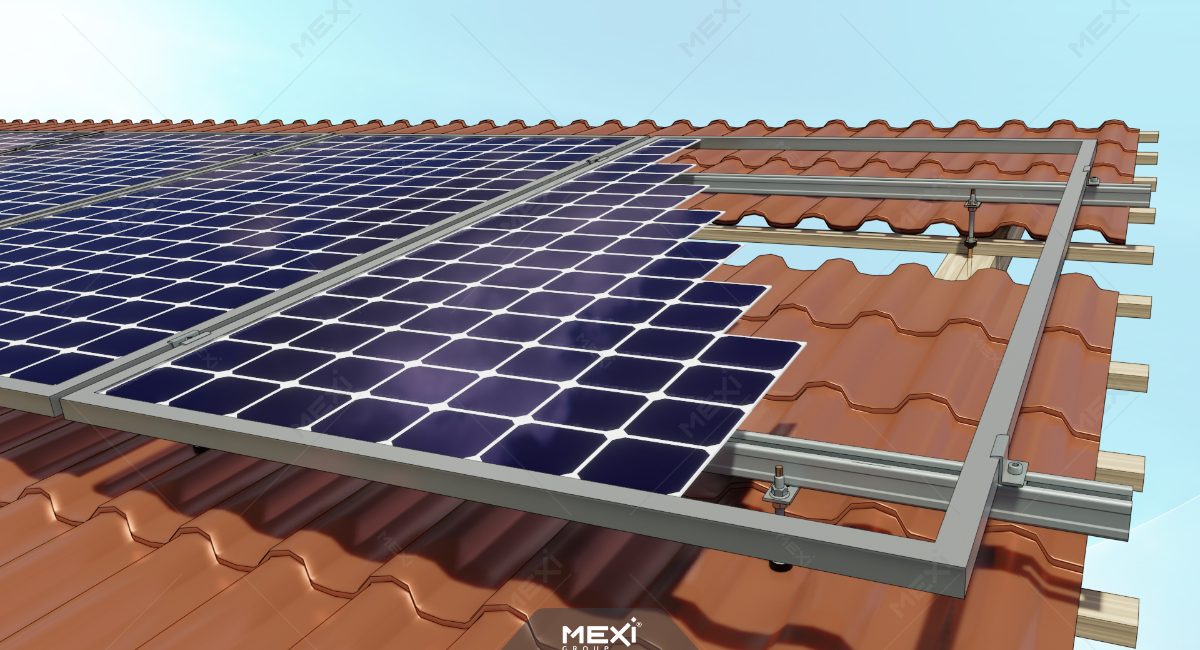

photovoltaic panel mounting system with hanger bolts

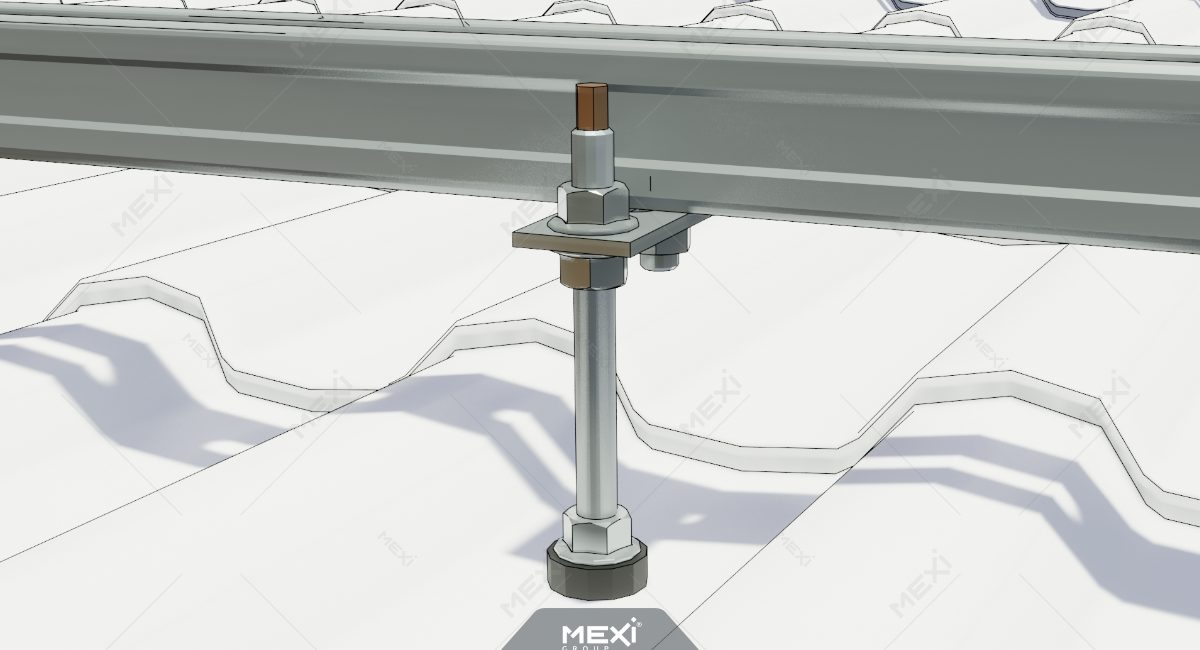

hanger bolt for anchoring mounting rails

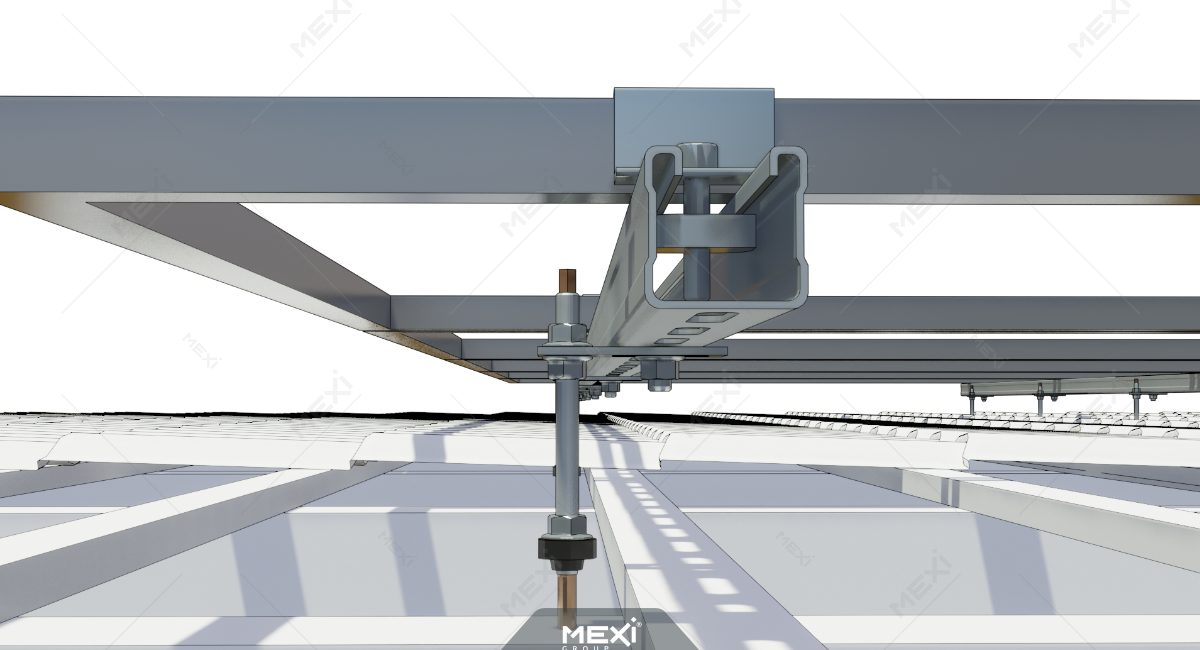

hanger bolt and mounting rail for photovoltaic panels

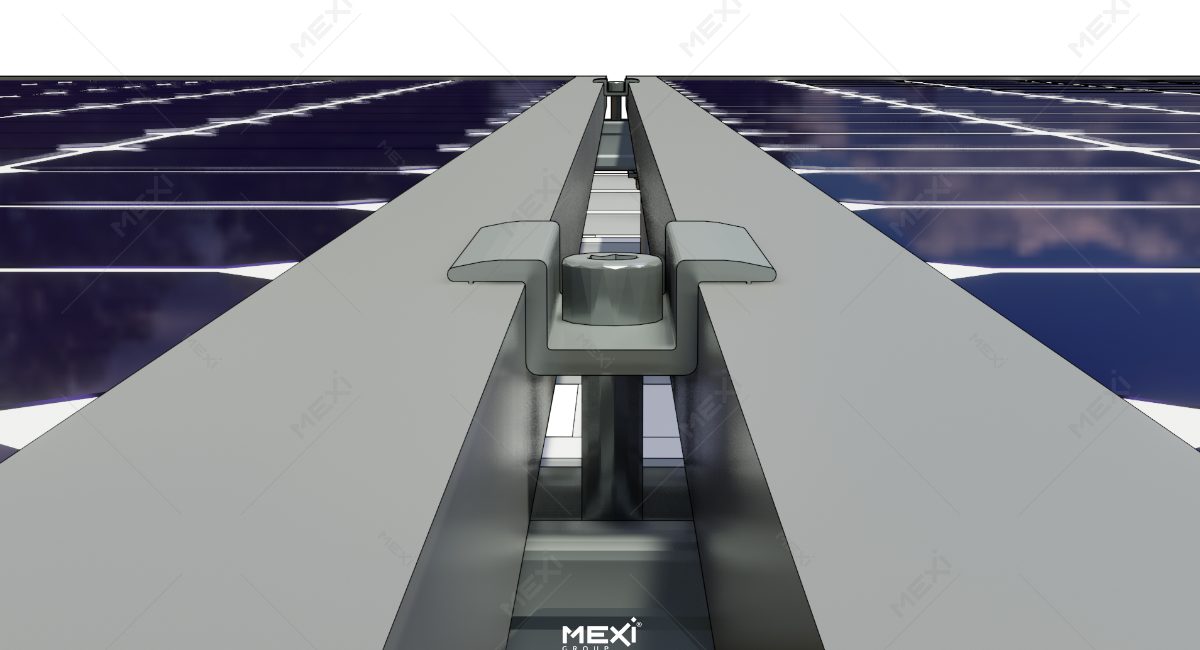

intermediate clamp for fixing the solar panels
photovoltaic panel mounting system with hanger bolts
hanger bolt for anchoring mounting rails
hanger bolt and mounting rail for photovoltaic panels
intermediate clamp for fixing the solar panels

SPECIFICATIONS:

fixable with screws compatible with the roof

Mounting with screws to the roof

YES

can be installed photovoltaic panels with power between

PV panel power

350-700 W

wind resistance for the photovoltaic system

Wind resistance

150 Km/h

the snow load capacity of the photovoltaic system

Snow load capacity

2.5 kN/m2

fixable with screws compatible with the roof

Fixing with anchoring hanger bolt to the roof structure.

can be installed photovoltaic panels with power between

Solar panels with power between 350-700 W can be installed.

easy and quick installation of the structure

Easy installation due to the simplicity of its components and connections.

quality photovoltaic steel structures

Guaranteed quality of S350-GD steel profiles through production certificates.

corrosion protection by galvanization

Galvanized steel profiles with Z350, ZM310 for maximum protection against corrosion.

◆ Includes all the hardware and fasteners, including the PV panel fasteners.

◆ The mounting system can adapt to the different sizes of the photovoltaic panels on the market.

If you are interested in this structure type, CLICK the button below

After completing and sending the contact form, one of our team members will contact you as soon as possible.
