For inclined roof

Mounting with clamping clips on Isopanel • ACLF-IP

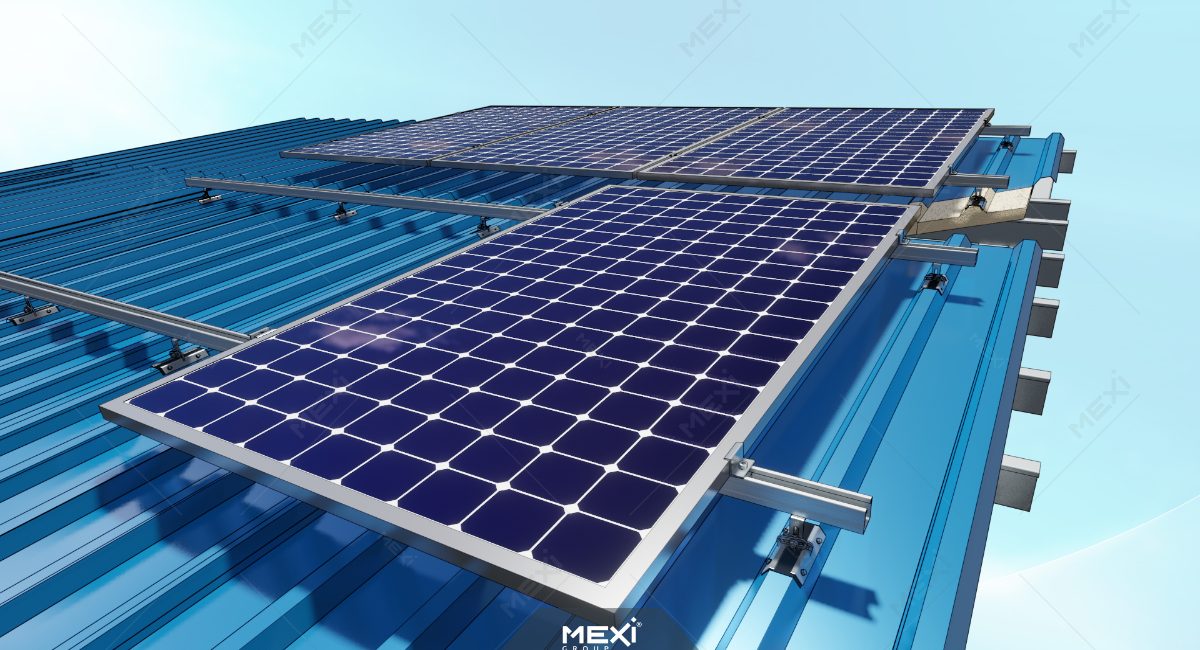

photovoltaic mounting system for Isopanel covered roof

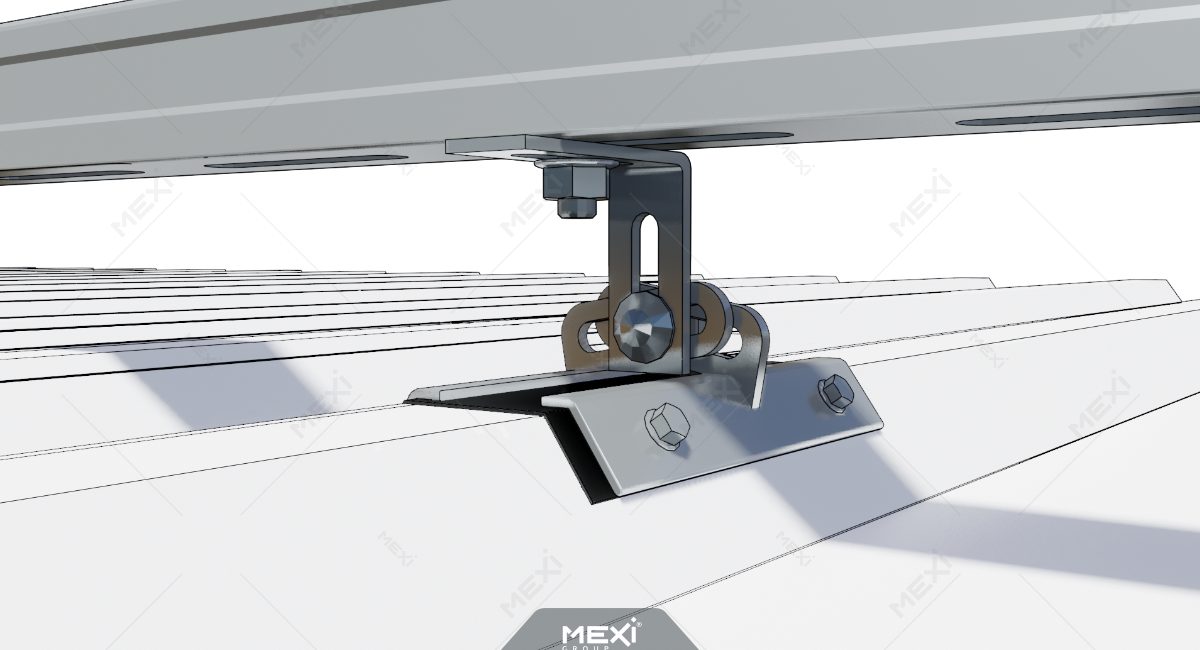

photovoltaic mounting with clamping clip

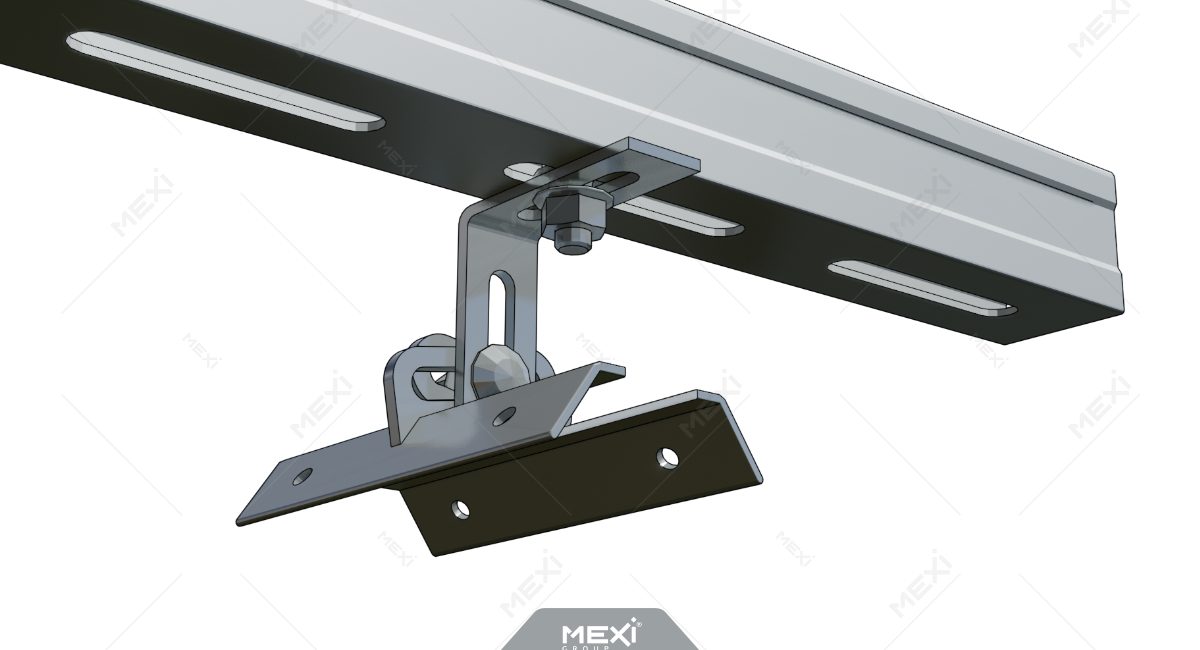

isoapnel clamping clip and solar mounting rail

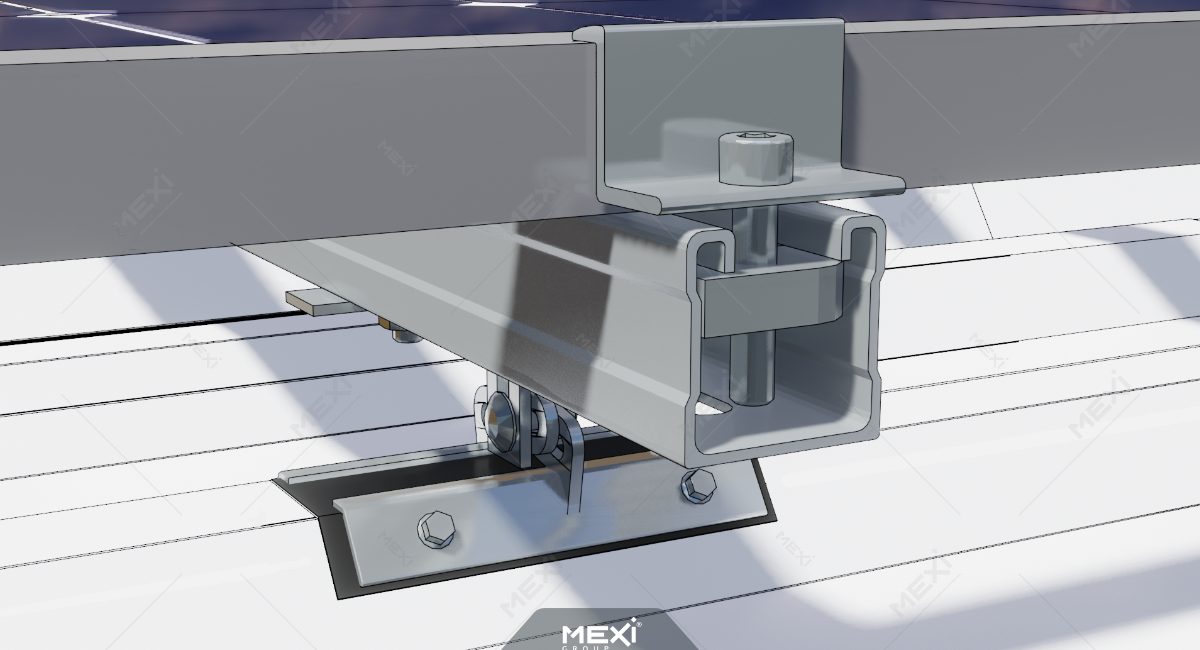

photovoltaic mounting system

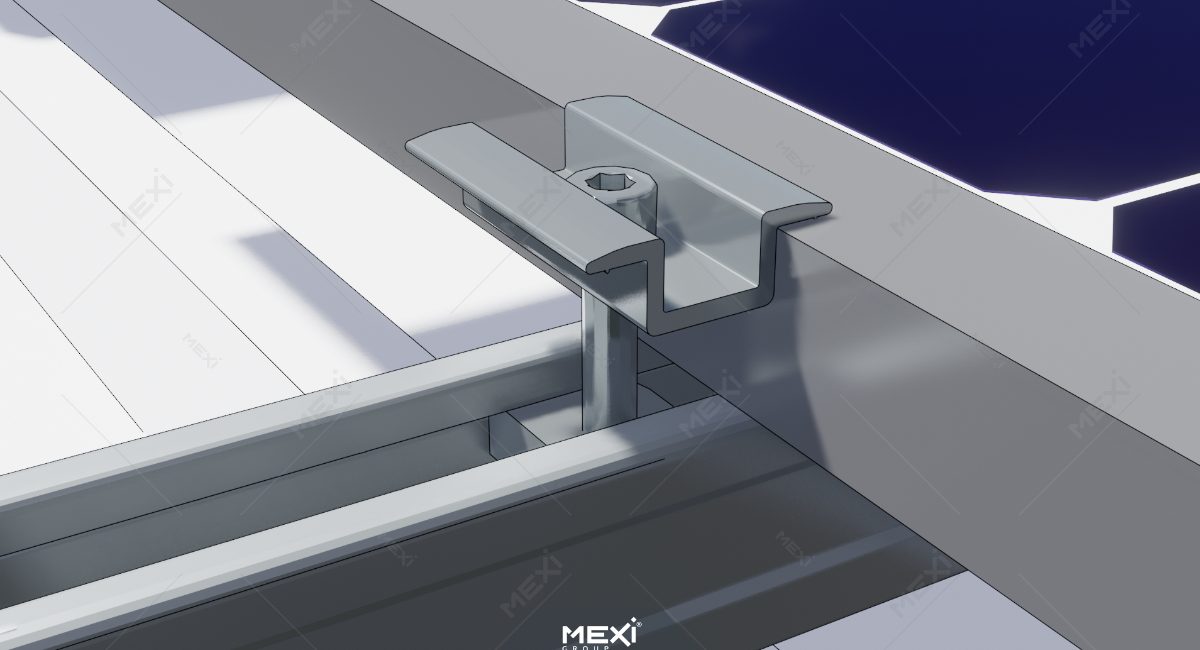

photovoltaic panel mounting clamp
photovoltaic mounting system for Isopanel covered roof
photovoltaic mounting with clamping clip
isoapnel clamping clip and solar mounting rail
photovoltaic mounting system
photovoltaic panel mounting clamp

SPECIFICATIONS:

fixable with screws compatible with the roof

Mounting with screws to the roof

YES

can be installed photovoltaic panels with power between

PV panel power

350-700 W

wind resistance for the photovoltaic system

Wind resistance

150 Km/h

the snow load capacity of the photovoltaic system

Snow load capacity

2.5 kN/m2

fixable with screws compatible with the roof

Fixing with screws suitable for the roof structure.

can be installed photovoltaic panels with power between

Solar panels with power between 350-700 W can be installed.

easy and quick installation of the structure

Easy installation due to the simplicity of its components and connections.

quality photovoltaic steel structures

Guaranteed quality of S350-GD steel profiles through production certificates.

corrosion protection by galvanization

Galvanized steel profiles with Z350, ZM310 for maximum protection against corrosion.

◆ Includes all the hardware and fasteners, including the PV panel fasteners.

◆ The mounting system can adapt to the different sizes of the photovoltaic panels on the market.
