Raised (floating) structure and variable PV panel mounting system • ASS-O

SPECIFICATIONS:

Fixing with screws to the roof

YES

Anchoring with ballasts

Angle of inclination

10-25º

PV panel power

350-700 W

Wind resistance

150 Km/h

Snow load capacity

2.5 kN/m2

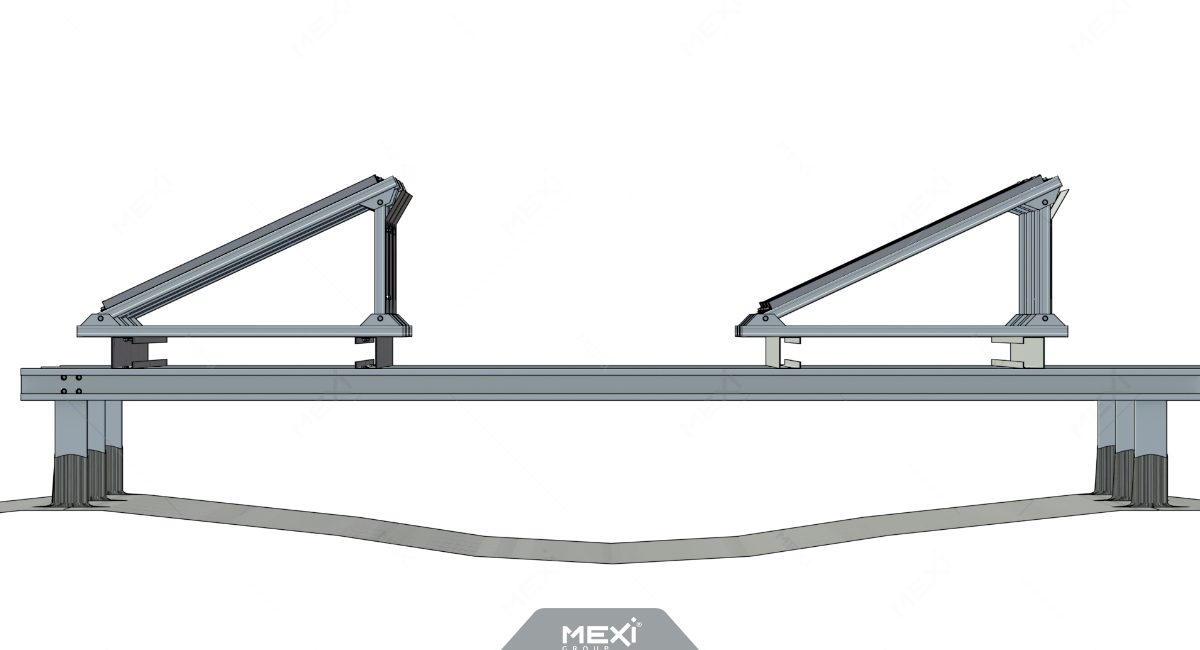

The structure can be ordered at different angles of inclination, between 10-25 degrees.

Fixable with screws according to the roof structure system.

Solar panels with power between 350-700 W can be installed.

Easy installation due to the simplicity of its components and connections.

Guaranteed quality of S350-GD steel profiles through production certificates.

Galvanized steel profiles with Z350, ZM310 for maximum protection against corrosion.

◆ Includes all the hardware and fasteners, including the photovoltaic panel fasteners.

◆ The mounting system can adapt to the different sizes of the photovoltaic panels on the market.

◆ It is recommended to use wind deflector plate for this mounting system.

If you are interested in this structure type, CLICK the button below
