One pillar for 1 vertically oriented panel • 1P-VR1

SPECIFICATIONS:

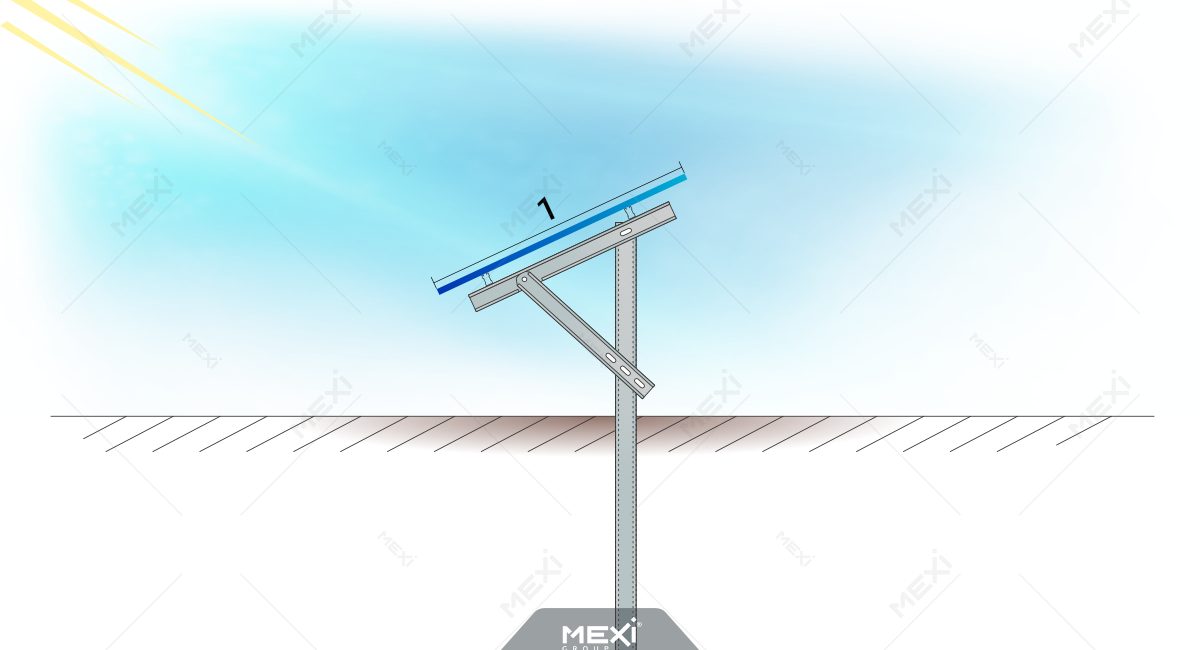

Anchoring by hammering into the ground

YES

Anchoring with ground screw

YES

Anchoring by embedding in concrete

YES

Mechanical fixing to foundation

YES

Mechanical anchorage to ballast

YES

Tilt angle

10-30º

PV panel power

350-700 W

Wind resistance

150 Km/h

Snow load capacity

2.5 kN/m2

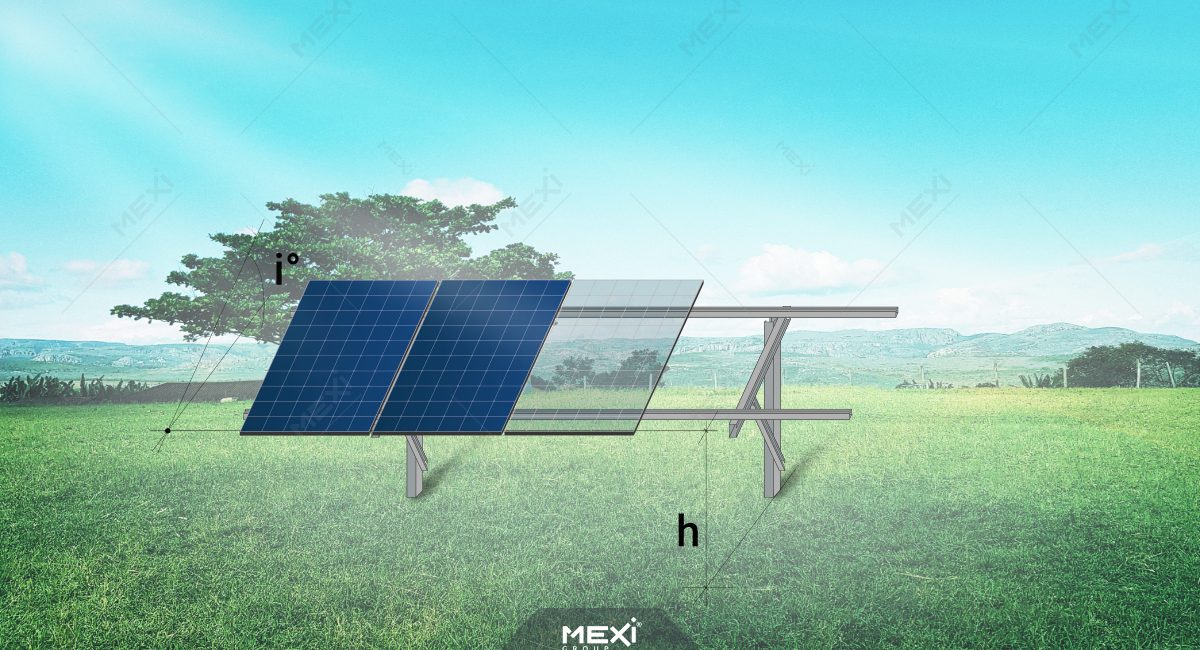

The structure can be ordered at different angles of inclination, between 10-30 degrees.

Ground clearance can be ordered according to customer specifications.

PV panels with power between 350-700 W can be installed.

Easy installation due to the simplicity of its components and connections.

Guaranteed quality of S350-GD steel profiles through production certificates.

Galvanized steel profiles with Z350, ZM310 for maximum protection against corrosion.

◆ Connections between the structure elements are made with metric screws.

◆ Includes all the hardware and fasteners, including the PV panel fasteners.

◆ The structure can adapt to the different sizes of the photovoltaic panels on the market.

◆ Structural and load resistance project (wind, snow) can be requested.

If you are interested in this structure type, CLICK the button below
