For flat roof

Structure + ballast holder – East-West orientation • ABL-O-EV

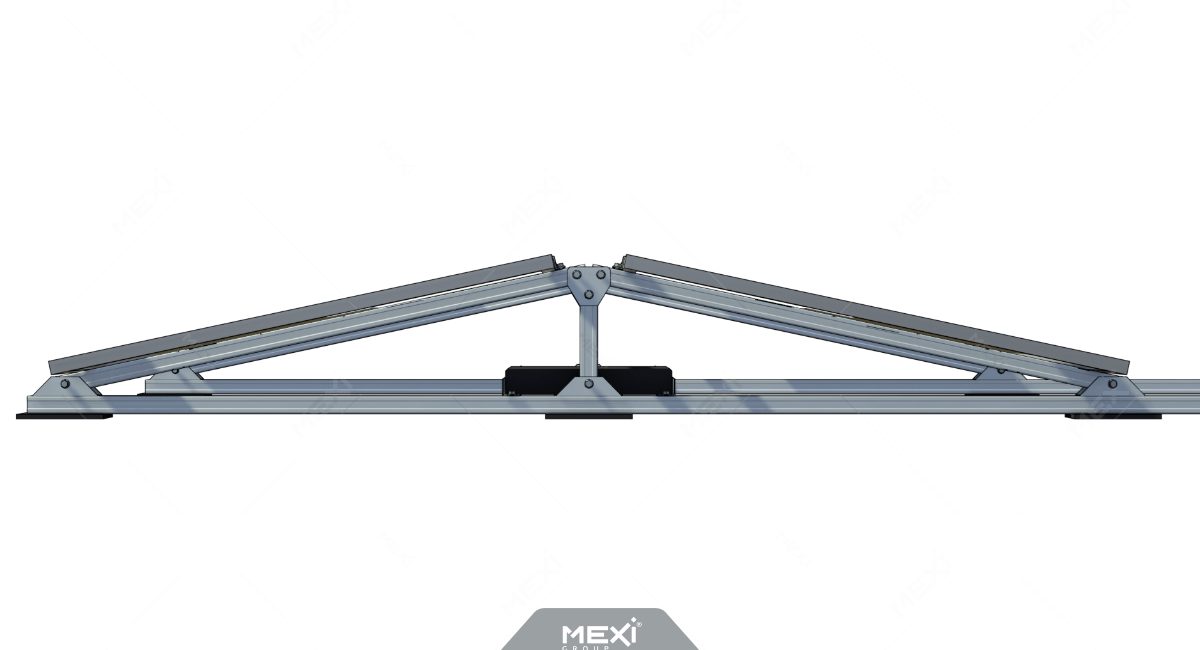

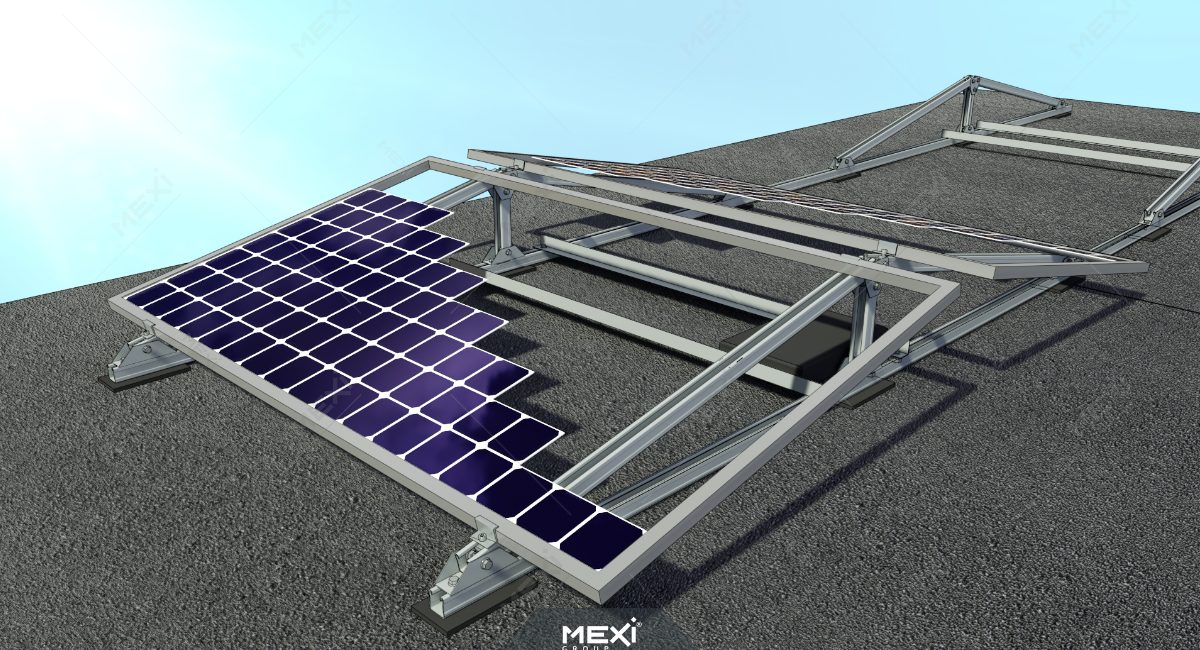

east-west oriented photovoltaic support structure
east-west oriented photovoltaic support structure

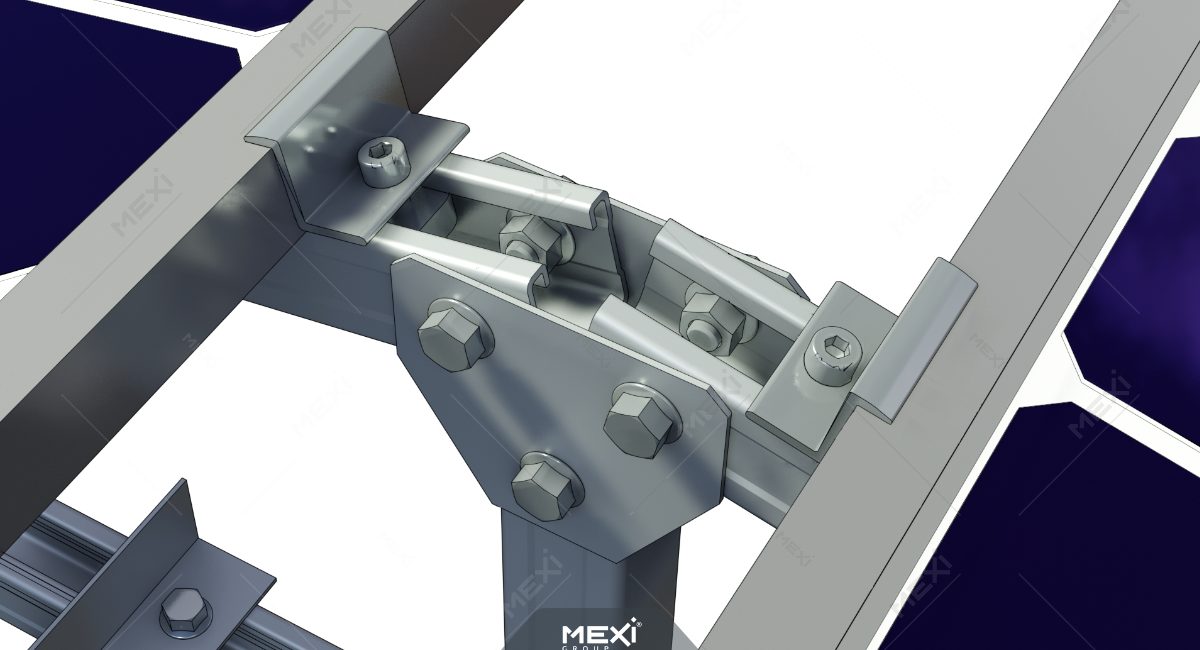

adjustable mounting system for photovoltaic panels

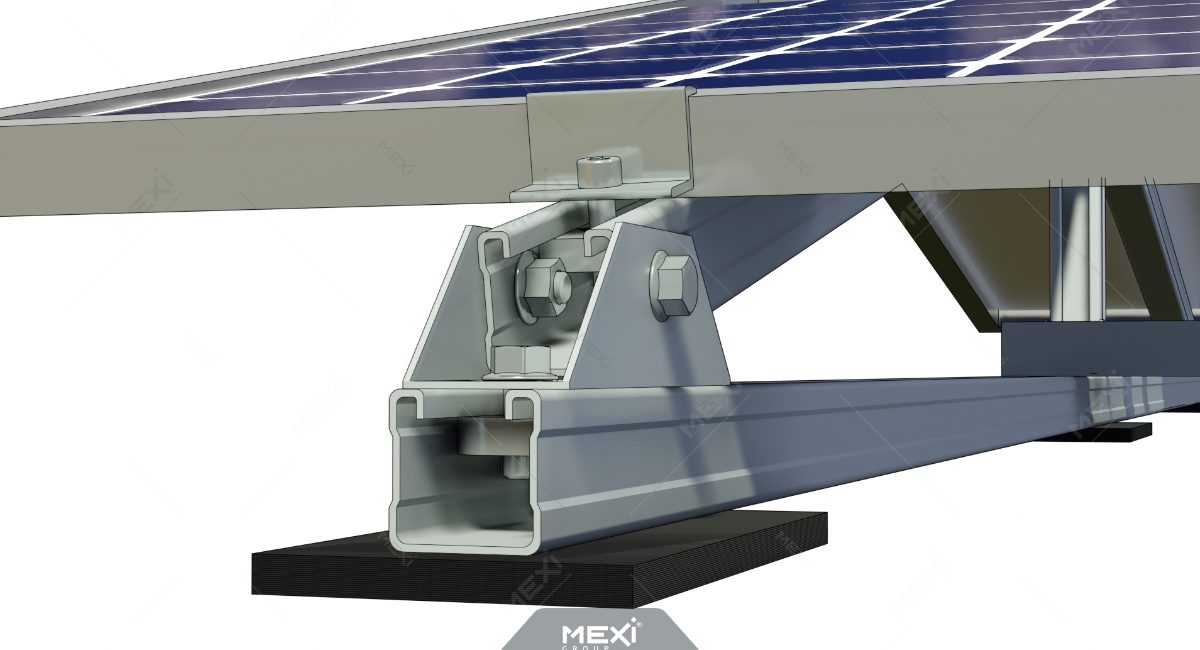

photovoltaic mounting system for flat roof

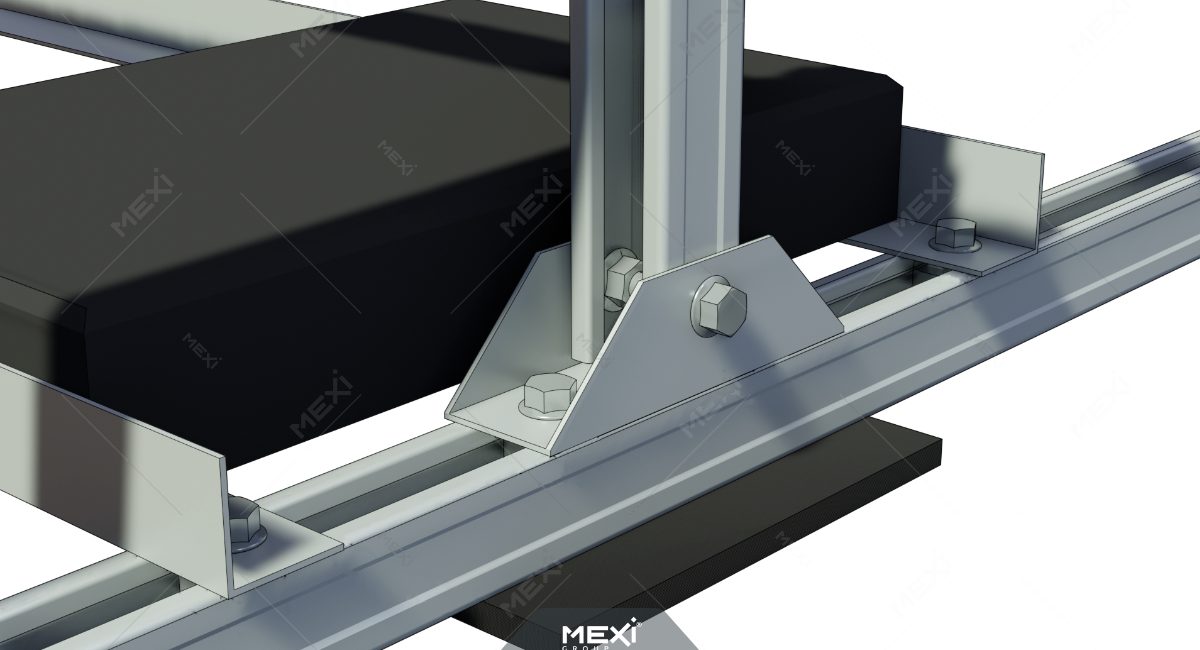

photovoltaic mounting system on flat roof using ballasts
east-west oriented photovoltaic support structure
east-west oriented photovoltaic support structure
adjustable mounting system for photovoltaic panels
photovoltaic mounting system for flat roof
photovoltaic mounting system on flat roof using ballasts

SPECIFICATIONS:

photovoltaic structure orientations

Solar panels orientation

East-West

solar panel structure fixed using ballasts

Anchoring with ballasts

YES

fixable with screws compatible with the roof

Fixing with screws to the roof

YES

the angle of inclination

Angle of inclination

10-25º

can be installed photovoltaic panels with power between

PV panel power

350-700 W

wind resistance for the photovoltaic system

Wind resistance

150 Km/h

the snow load capacity of the photovoltaic system

Snow load capacity

2.5 kN/m2

the angle of inclination

The structure can be ordered at different angles of inclination, between 10-25 degrees.

solar panel structure fixed using ballasts

Possibility of fixing with ballasts on flat roof.

can be installed photovoltaic panels with power between

Solar panels with power between 350-700 W can be installed.

easy and quick installation of the structure

Easy installation due to the simplicity of its components and connections.

quality photovoltaic steel structures

Guaranteed quality of S350-GD steel profiles through production certificates.

corrosion protection by galvanization

Galvanized steel profiles with Z350, ZM310 for maximum protection against corrosion.

◆ Includes all the hardware and fasteners, including the photovoltaic panel fasteners.

◆ The mounting system can adapt to the different sizes of the photovoltaic panels on the market.

◆ Can be used with ballasts on flat roofs with a maximum slope of 5-6 degrees.

◆ East-West oriented photovoltaic support system.
