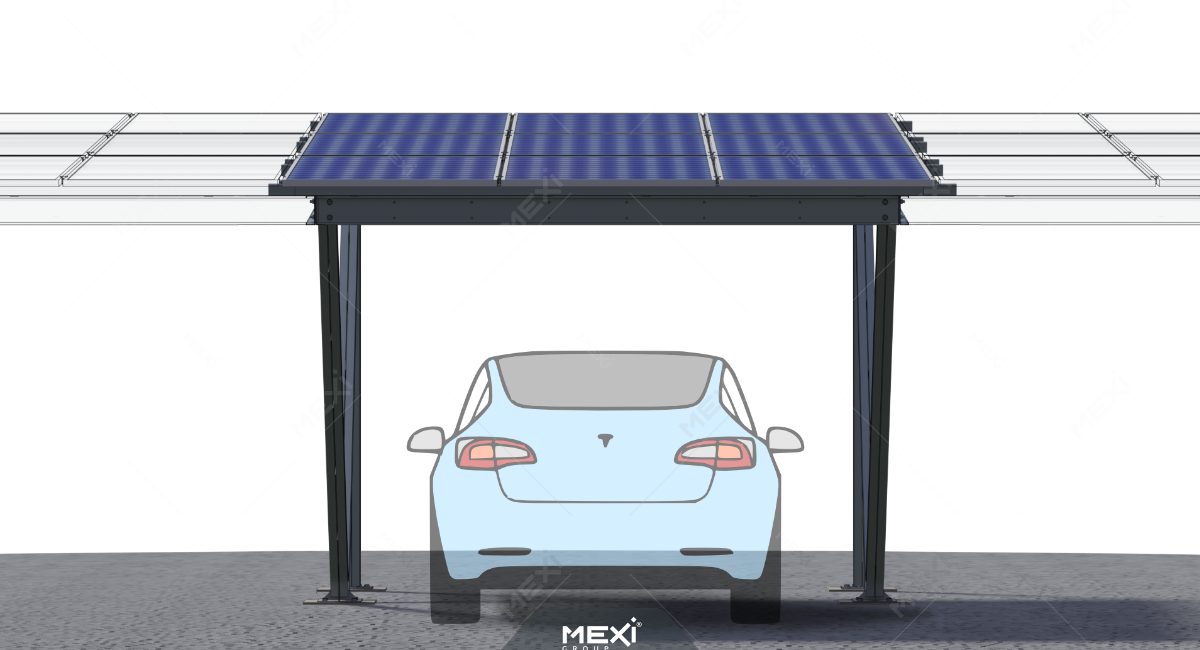

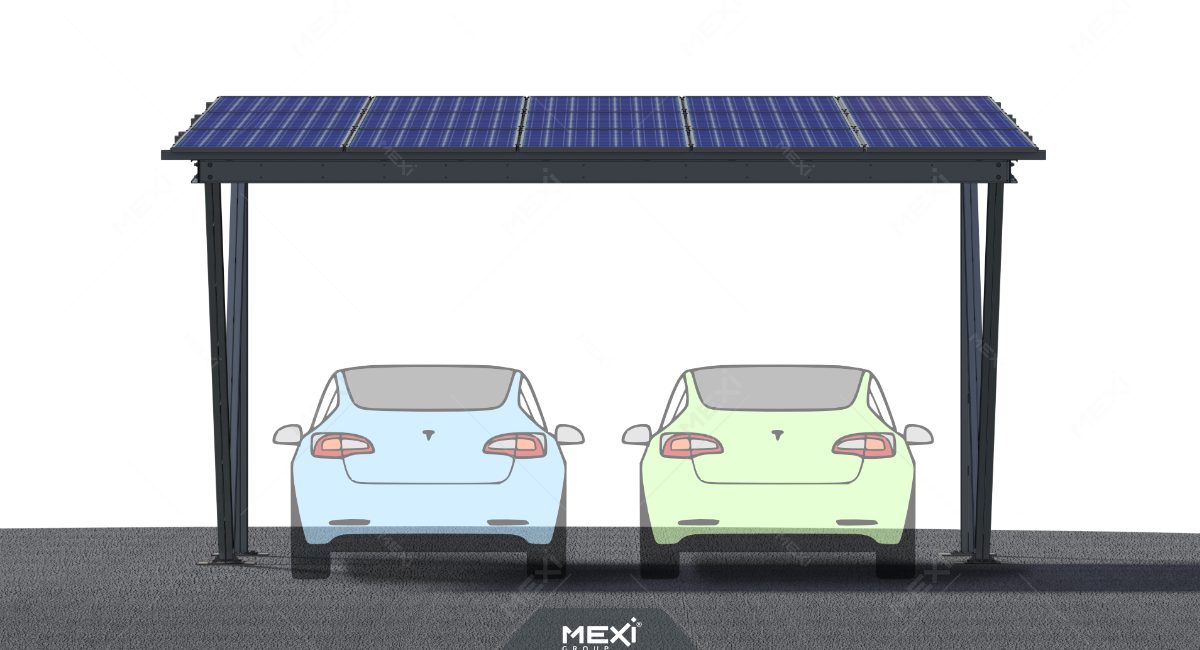

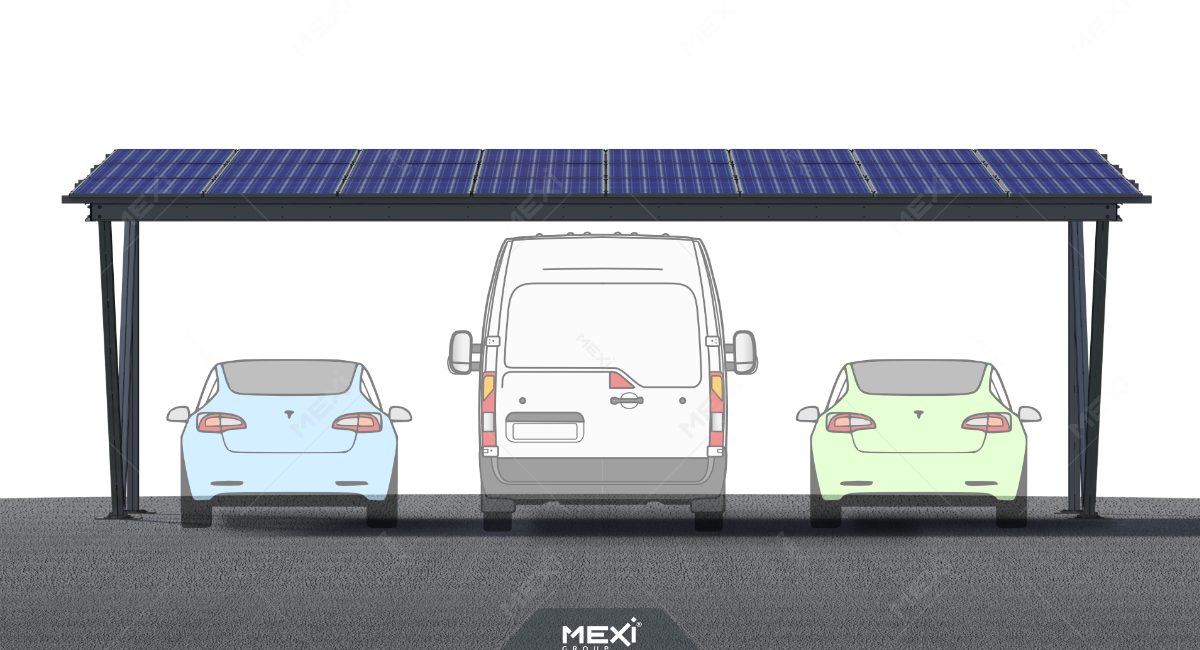

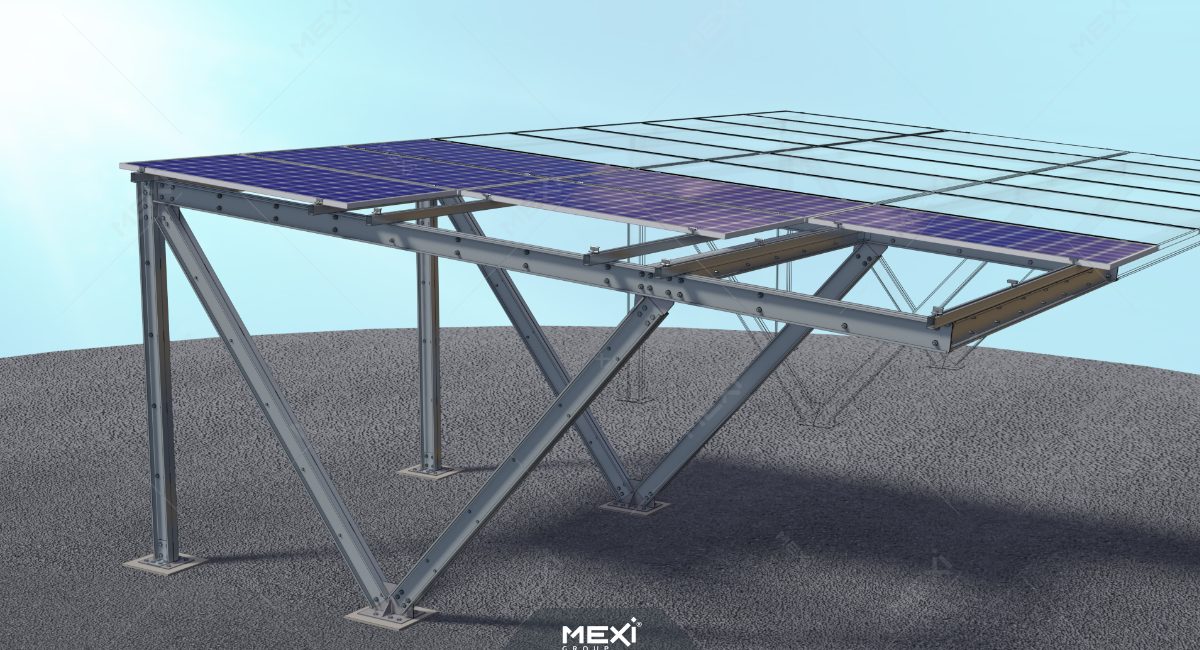

Carport with half-gable roof • CP-1A-V2

SPECIFICATIONS:

Mechanical anchorage to foundation

YES

The roofs’ angle of inclination

5-10º

Adjustable tilt angle

Customizable carport dimensions

YES

PV panel power

350-700 W

Wind resistance

150 Km/h

Snow load capacity

2.5 kN/m2

The structure can be ordered at different angles of inclination, between 5-10 degrees.

Dimensions of the carport structure are customized.

Solar panels with power between 350-700 W can be installed.

Easy installation due to the simplicity of its components and connections.

Guaranteed quality of S350-GD steel profiles through production certificates.

Galvanized steel profiles with Z350, ZM310 for maximum protection against corrosion.

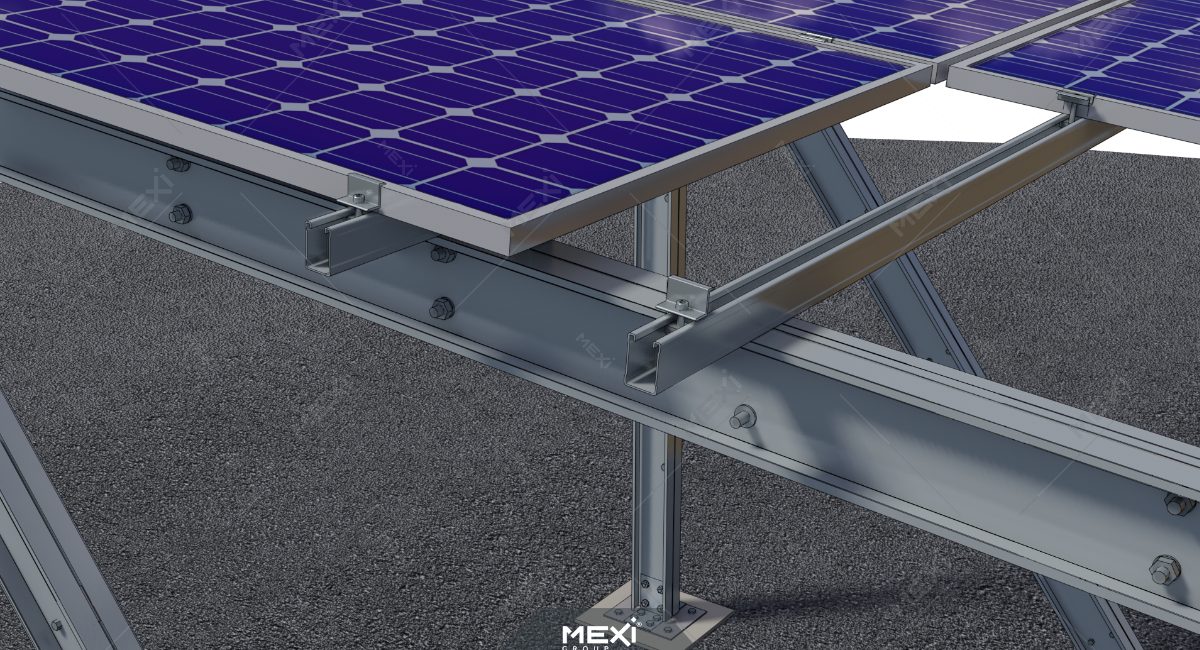

◆ Connections between the structure elements are made with metric screws.

◆ Includes all the hardware and fasteners, including the photovoltaic panel fasteners.

◆ The structure can adapt to the different sizes of the photovoltaic panels on the market.

◆ Structural and load resistance project (wind, snow) can be requested.

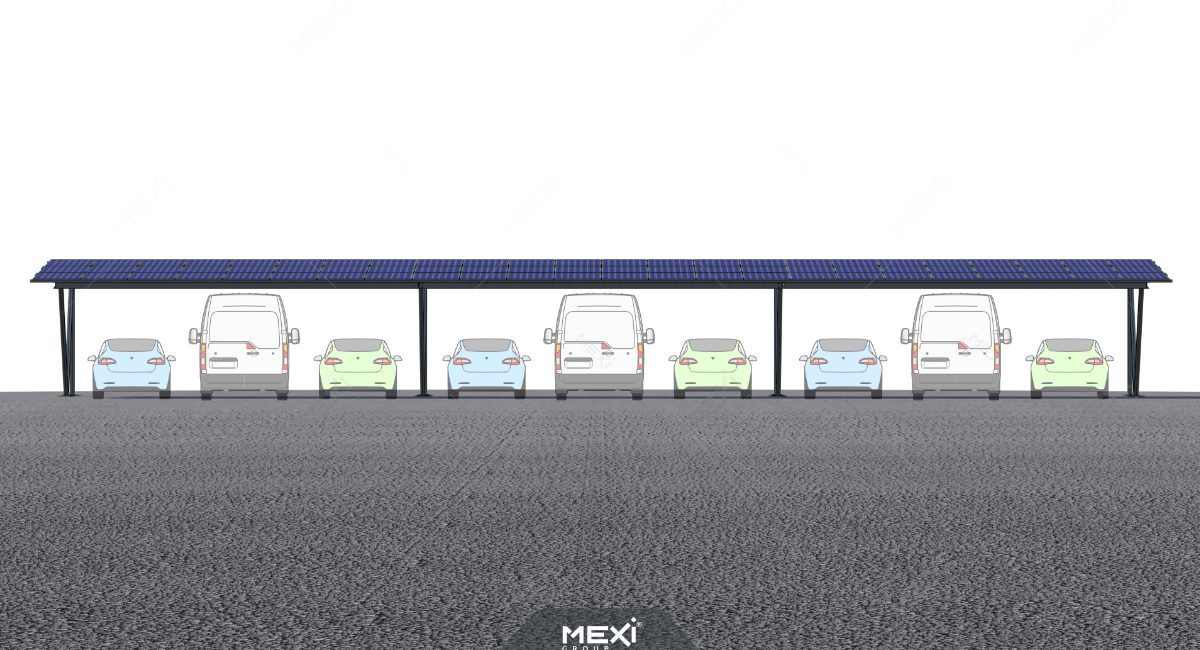

◆ The carport structure can be extended and modulated for more parking spaces upon request.

If you are interested in this structure type, CLICK the button below
