East-West oriented structures

Three pillars for 2×2 horizontally oriented panels – East-West • 3P-OR2-EV

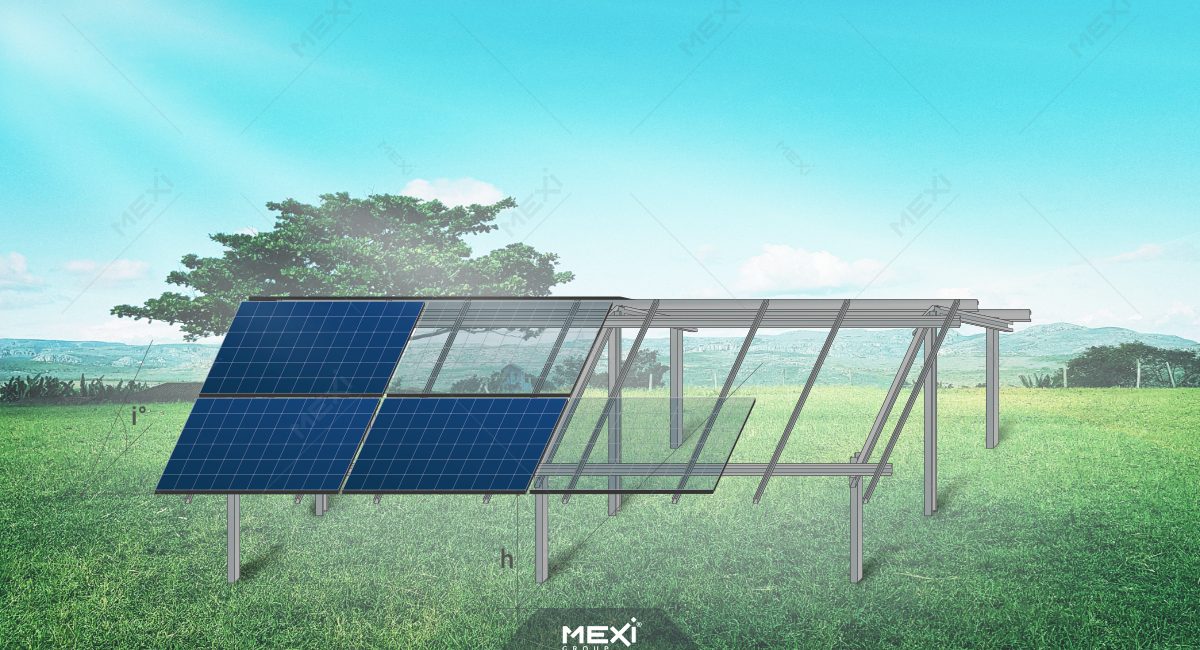

east-west oriented photovoltaic structure

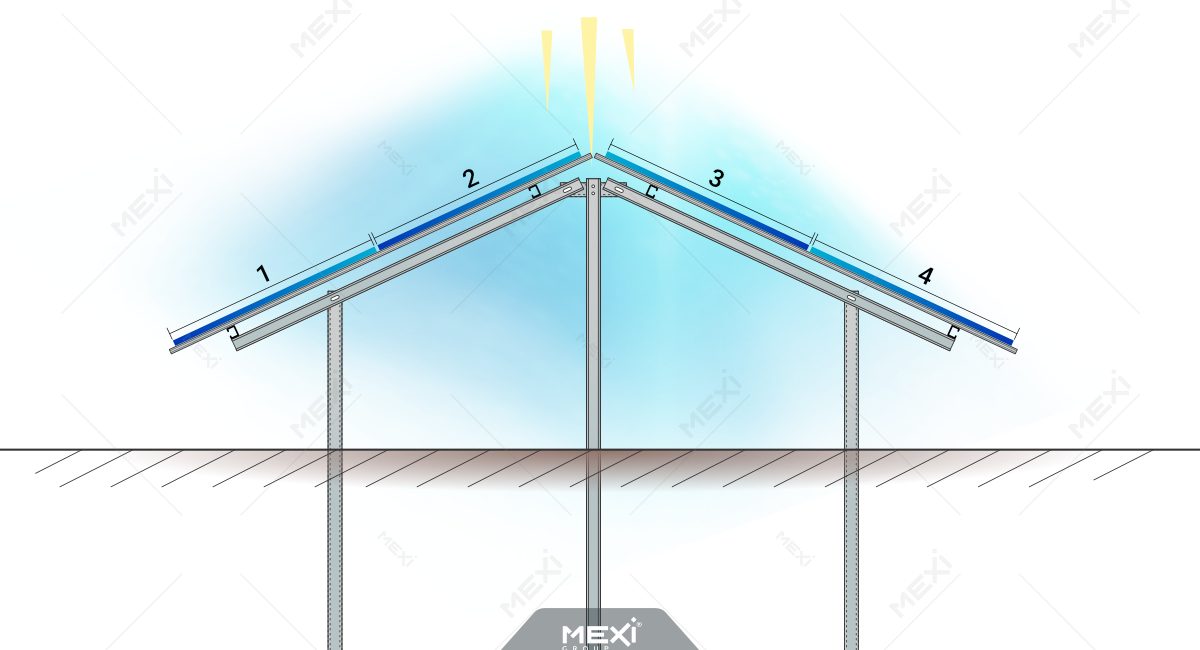

East-West oriented photovoltaic structure for solar farm
east-west oriented photovoltaic structure
East-West oriented photovoltaic structure for solar farm

SPECIFICATIONS:

photovoltaic structure fixed to ground by hammering into the soil

Anchoring by hammering into the ground

YES

photovoltaic support structure anchored with ground screw

Anchoring with ground screw

YES

photovoltaic structure with pillars embedded in concrete

Anchoring by embedding in concrete

YES

structure mechanically fixed to foundation

Mechanical fixing to foundation

YES

mechanically attached to ballasts

Mechanical anchorage to ballast

YES

photovoltaic structure orientations

Orientation of the photovoltaic panels

East-West

the angle of inclination

Tilt angle

10-35º

can be installed photovoltaic panels with power between

PV panel power

350-700 W

wind resistance for the photovoltaic system

Wind resistance

150 Km/h

the snow load capacity of the photovoltaic system

Snow load capacity

2.5 kN/m2

the angle of inclination

The structure can be ordered with different angles of inclination, between 10-35 degrees.

ground clearance of the photovoltaic structure

Ground clearance can be ordered according to customer specifications.

can be installed photovoltaic panels with power between

PV panels with power between 350-700 W can be installed.

easy and quick installation of the structure

Easy installation due to the simplicity of its components and connections.

quality photovoltaic steel structures

Guaranteed quality of S350-GD steel profiles through production certificates.

corrosion protection by galvanization

Galvanized steel profiles with Z350, ZM310 for maximum protection against corrosion.

◆ Connections between the structure elements are made with metric screws.

◆ Includes all the hardware and fasteners, including the PV panel fasteners.

◆ The structure can adapt to the different sizes of the photovoltaic panels on the market.

◆ Structural and load resistance project (wind, snow) can be requested.

◆ East-West oriented photovoltaic structure
